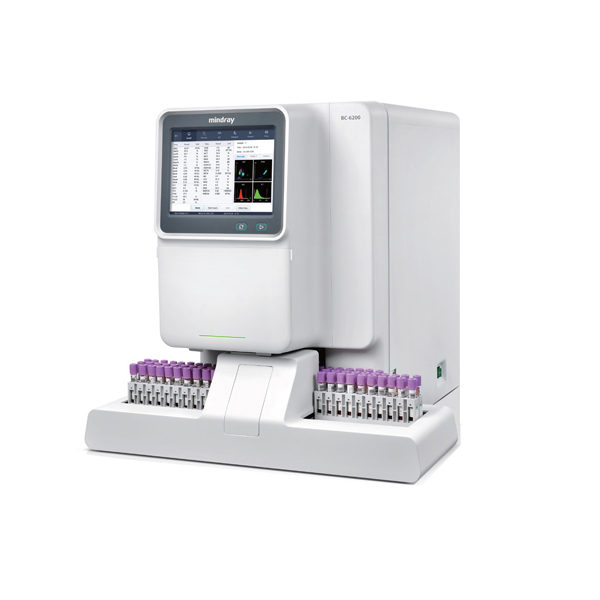

BC-6200

Auto Hematology Analyzer

Click Here To See the Product Brochure

Parameter	Typical Specification
Principles	SF Cube* method to count WBC, 5-part diff, NRBC, RET and PLT-O DC impedance method for RBC and PLT Cyanide free reagent for hemoglobin test *S: Scatter, F: Fluorescence, Cube: 3D analysis
Parameters	37 Reportable parameters (whole blood): WBC, Lym%, Mon%, Neu%, Bas%, Eos%, IMG%, Lym#, Mon#, Neu#, Eos#, Bas#, IMG#; RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, NRBC#, NRBC%; PLT, MPV, PDW, PCT, P-LCR, P-LCC, RET%, RET#, RHE, IRF, LFR, MFR, HFR, IPF 29 Research parameters (whole blood): HFC#, HFC%, RBC-O, PLT-O, PLT-I, WBC-O, WBC-D, TNC-D, IME%, IME#, H-NR%, L-NR%, NLR, PLR, WBC-N, TNC-N, InR#, InR‰, Micro#, Micro%, Macro#, Macro%, RPI, H-IPF, IPF#, MRV, FRC#, FRC%, PDW-SD 7 Reportable parameters (body fluid): WBC-BF, TC-BF#, MN#, MN%, PMN#, PMN%, RBC-BF 11 Research parameters (body fluid): Eos-BF#, Eos-BF%, Neu-BF#, Neu-BF%, HF-BF#, HF-BF%, RBC-BF, LY-BF, LY-BF%, MO-BF#, MO-BF% 2 Histograms for RBC and PLT 3 Three-dimension scatter grams: DIFF, WNB, RET 5 Two-dimension scatter grams: DIFF, WNB, RET, RET-EXT, PLT-O
Mode	CBC, CBC+DIFF, CBC+DIFF+RET, CBC+RET, RET
Performance	WBC : Linearity Range 0-500×10⁹/L \| Precision ≤2.5% (≥4×10⁹/L) \| Carryover ≤1.0% RBC : Linearity Range 0-8.60×10¹²/L \| Precision ≤1.5% (≥3.5×10¹²/L) \| Carryover ≤1.0% HGB : Linearity Range 0-260g/L \| Precision ≤1.0% (110-180g/L) \| Carryover ≤1.0% HCT : Linearity Range 0-75% \| Precision ≤1.5% (30%-50%) \| Carryover ≤1.0% PLT : Linearity Range 0-5000×10⁹/L \| Precision ≤4.0% (≥100×10⁹/L) \| Carryover ≤1.0% RET# : Linearity Range 0-0.8×10¹²/L \| Precision ≤15% (RBC≥3×10¹²/L; 1%≤RET%≤4%) \| Carryover /
Sample volume	Whole blood (Autoloader, Closed Tube) : 80uL Capillary blood (Closed Tube) : 35uL Predilute (Closed Tube) : 20uL Body fluid (Closed Tube) : 85uL
Throughput	Up to 110 samples per hour (CBC+DIFF) Up to 65 samples per hour (RET) Up to 40 samples per hour (Body fluid)
Loading capacity	Up to 50 sample tubes
Data storage capacity	Up to 100,000 results including numeric and graphical information
Operating environment	Temperature: 15°C~32°C Humidity: 30%~85%
Dimension and Weight	Dimensions: 672mm (W) x 826mm (D) x 695mm (H) Weight: 87.5kg
